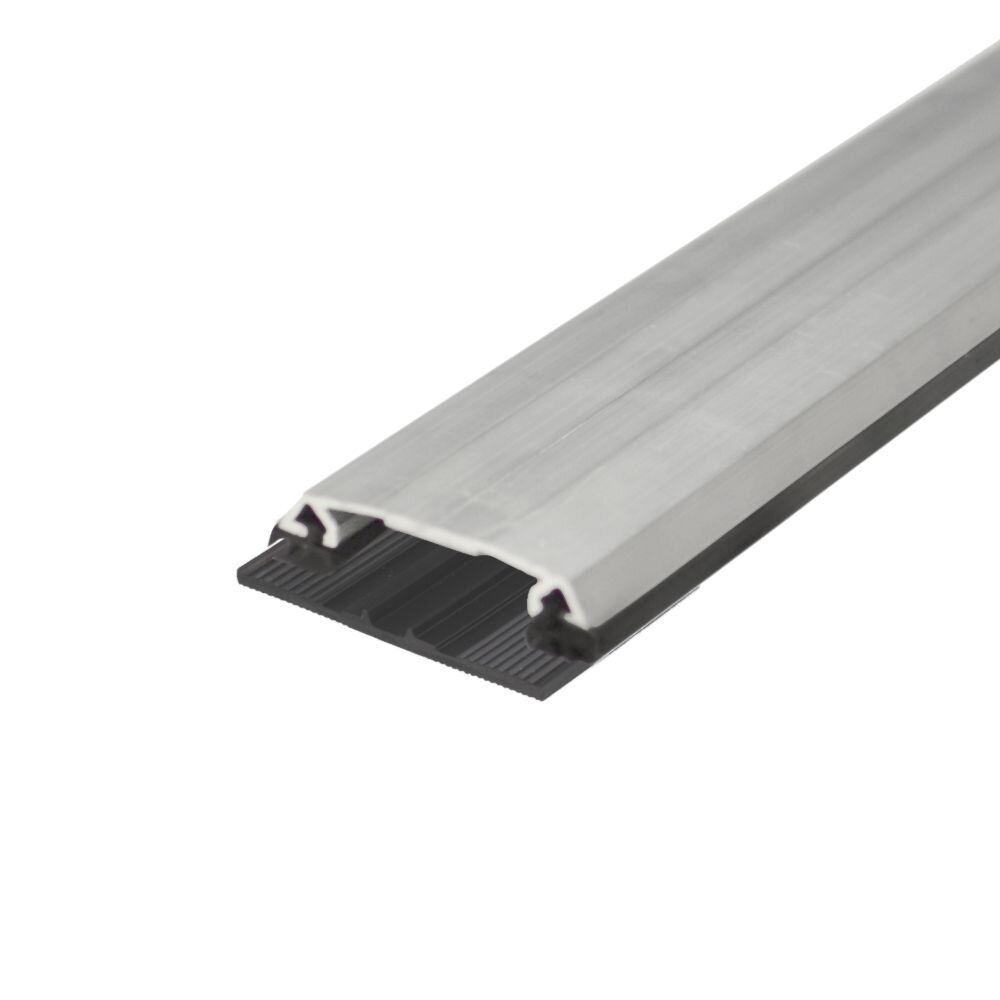

Aluminum Top Joining Profile Set (4-16mm)

Description

Heavy-Duty Polycarbonate Sheet Joiner

This aluminum joining profile is the ideal solution for connecting two polycarbonate sheets in roofing or wall applications. It acts as a structural bridge that clamps the edges of both sheets firmly from above, creating a unified and stable surface.

Complete 3-Part Joining System:

• Aluminum Top Joiner: The main structural component that clamps the two sheets together.
• Full-Length Bottom Rubber: A wide rubber strip that sits between the aluminum and the sheets, providing a soft but firm grip across the entire joint.
• Side Gaskets: Integrated seals that lock out water and dust at the very edge of the connection.

Key Features:

• Secure Connection: Specifically designed to join 4mm to 16mm sheets with high clamping force.
• Watertight Joint: The combination of the bottom rubber and side gaskets ensures the seam between the two sheets is completely sealed against rain.
• Durability: Made from corrosion-resistant aluminum for long-lasting performance in outdoor structures like carports and greenhouses.

Technical Specifications:

• Material: Aluminum & EPDM Rubber.
• Lengths: 2m, 4m, 6m.
• Compatibility: Joins sheets from 4mm to 16mm thick.

Important Information:

• Standard Length: 6 meters. Other lengths are custom-cut.
• Returns: Custom-cut items are non-returnable.
• Tolerance: Cutting error margin up to ±5%.
